How to Connect an HD Camera to a DVR: A Step-by-Step Guide

Posted by

admin

On July 25, 2025

When setting up a security system, one of the most common tasks is connecting HD cameras to a DVR. Whether you are protecting your home or a business, a proper connection ensures clear video quality and reliable recording. In this guide, you’ll learn how to connect an HD camera to a DVR correctly and avoid common installation mistakes.

Understand Your Equipment

Before you start, make sure you have:

- An HD analog camera (such as Hikvision Turbo HD).
- A compatible DVR that supports HD input.
- Coaxial cables (RG59 or similar).
- Power supply and connectors (BNC and DC plugs).

HD cameras usually use coaxial cables for video transmission, which makes them different from IP cameras that rely on network cables. Ensuring you have the right components is the first step to a smooth installation.

Position and Mount the Camera

Decide where to place your camera for maximum coverage. Mount it securely to avoid movement or vibration. Make sure the cable path is clear and protected from weather or physical damage.

Connect the Video Cable

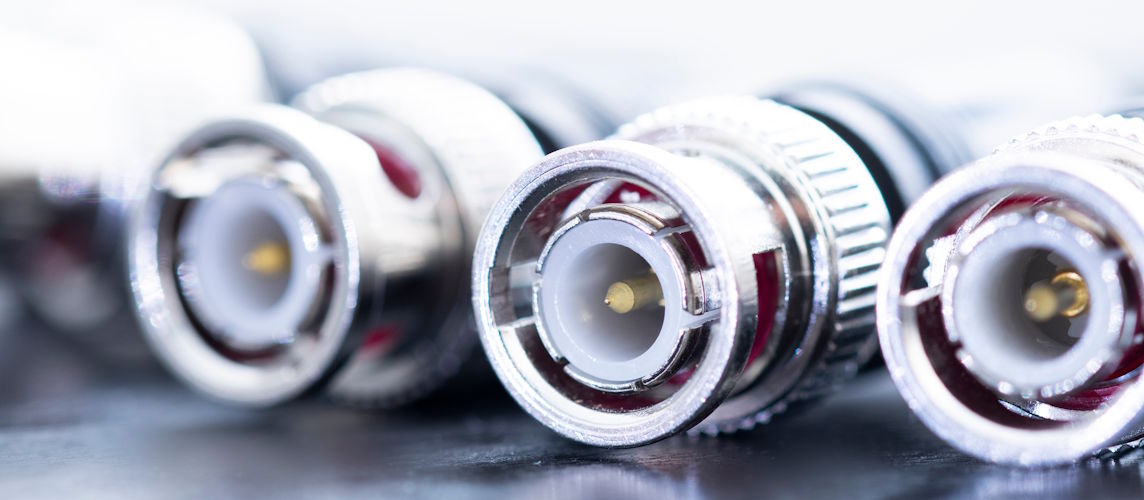

Take the coaxial cable and attach a BNC connector to each end. One end goes into the camera’s video output port, and the other connects to the DVR’s video input channel. A tight and secure connection is critical to maintain HD video quality.

Power Up the Camera

Use a 12V DC power adapter or a power supply box to power the camera. If you’re using multiple cameras, a central power supply is often more efficient. Connect the DC power plug to the camera’s power input and ensure the power supply is stable.

Configure the DVR

Turn on the DVR and connect it to a monitor or TV. Once the camera is powered and linked, the DVR should automatically detect the video signal. Navigate to the video input channel you used, and you should see the camera feed.

Adjust the Camera Settings

Fine-tune the camera’s angle and focus to capture the desired area. Use the DVR’s menu to adjust brightness, contrast, and resolution for the best image quality. HD DVRs often allow you to record in 720p or 1080p depending on your camera’s capabilities.

Test the System

Before finalizing the installation, test the camera during day and night conditions. Make sure the DVR is recording properly and that playback quality is clear. Checking early prevents future security gaps.

Professional Help in Dubai

If you’re not comfortable with wiring or configuration, hiring a professional can save time and ensure reliable results. At TechService.ae, we specialize in HD camera and DVR installations across Dubai. Our technicians ensure every connection is secure, every camera is optimized, and your system is ready for 24/7 protection.
